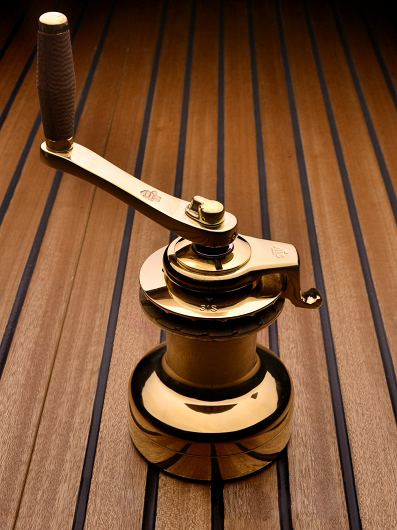

SELF TAILING WINCH
Speed: 2
Diameter of the winding drum [D): 76 mm
Diameter of the drum [B]: 142 mm
Height of the winch [H]: 180 mm
Gear ratio: 2,14:1 / 4,5:1
Power ratio: 14,7:1 / 42:1
Diameter of line [mm]: 10-14 mm
Diameter bolt circle: 105 mm
Flathead machine screws: 4xM8
Weight: 8,5 kg
Genoa: 35 m² / Spinnaker: 58 m²
